Epson release New product : S1D15K01 Single-chip LCD driver IC for digital instrument panel

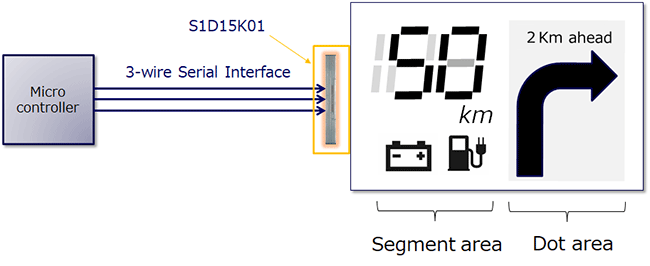

The S1D15K01 is a Hybrid LCD Driver IC that can be directly connected to a microcontroller, enabling Segment and Dot matrix display can be simultaneously displayed on a single LCD panel. The dedicated drive circuits for segment and dot matrix are mounted on a single chip, eliminating display defects caused by the difference in drive voltage between the segment area and dot matrix area, realizing high contrast display, and contributing to module cost reduction. The S1D15K01 also has a built-in temperature sensor circuit. This allows the system to be configured for optimal LCD contrast over a wide temperature range.
In addition, this product meets the stringent quality requirements for automotive applications, with an operating temperature of up to 105 ℃ and AEC-Q100 corresponsive.
Features
- Hybrid LCD can be driven by a single chip （Segment：120 x 4 Dot Matrix：160 x 80）
- Built-in Temperature Sensor Circuit
Outline Specifications
| Part Number | S1D15K01 |
|---|---|
| Supply Voltage | System VDD to VSS: 3.0 V～5.5 V |
| Booster VDD to VSS: 3.0 V～5.5 V | |
| MPU Interface | 3-wire Serial Interface |
| LCD Driver | Segment： 120 x 4 Dot Matrix：160 x 80 |
| LCD Drive Duty Configuration | Segment： 1/4 ～ 1/1 |
| Dot Matrix：Max 1/80 | |
| LCD Drive Bias Configuration | Segment： 1/3 (1/4 duty ～ 1/2 duty), static (1/1 duty) |
| Dot Matrix：1/5 to 1/13 (APT, IAPT conversion) Variable with electronic volume |
|
| Error Detection Functions | Detection of bit corruption in command register |
| RAM for Dot Matrix operation status error detection etc. | |
| Automotive QA | AEC-Q100 |
| Operating Temperature Range | －40～＋105℃ |
| Others | Built-in Oscillation Circuit |
| Built-in Temperature Sensor Circuit | |
| Briefsheet |  |
| Shipment Form | Au Bump Chip |
This IC is not designed for complying with radiation- or light-protected design.
