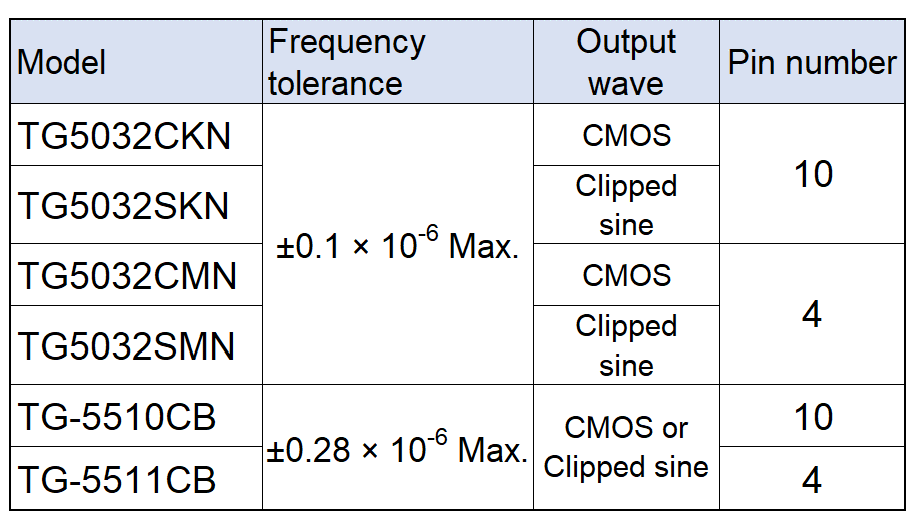

High stability TCXO available with either CMOS or Clipped Sine output
  - Available in frequencies from 10 to 54 MHz
  - Specified to +105 ºC for 5G Base Stations and Edge Computing
  which needs outdoor installation, miniaturization,
  and fan-less operation
  - Compared to other TCXOs, it offers a variety of improvements
  such as low temperature slope and lower phase noise
  - Complies with GR-1244-CORE Stratum3 and
  ITU-T G.8262.1, G.8273.2
  - Note: does not have a voltage control (Vc) function



  - Output frequency (fo) : 10 MHz to 54 MHz
  - Supply voltage : 3.3 V Typ.
  - Operation temperature : -40 ℃ to +105 ℃
  - Frequency / temperature characteristics : ±0.1 × 10^-6 Max.
  (-40 ℃ to +105 ℃)
  - Frequency slope : 0.05 × 10^-6/℃ Max. (-40 ℃ to +105 ℃)
  - Free run accuracy : ±4.6 × 10^-6 Max./ 20 years (For Stratum3)
  - Wander generation (TDEV, MTIE) :
  Conform to : ITU-T G.8262.1, G8273.2
  - External dimensions : 5.0 × 3.2 × 1.45 mm (10 pins, 4 pins)
  - (Vc function : Not suported)

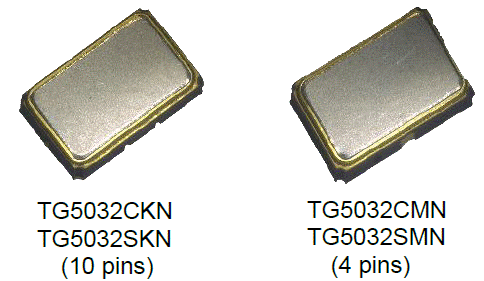

 Learn more  TG5032CKN  TG5032SKN  TG5032SMN  TG5032CMN



  - Output frequency (fo) : 10 MHz to 54 MHz
  - Supply voltage : 3.3 V Typ.
  - Operation temperature : -40 ℃ to +85 ℃ (+105 ℃ option)
  - Frequency / temperature characteristics : ±0.28 × 10^-6 Max.
   (-40 ℃ to +85 ℃)
  - Frequency slope : 0.2 × 10^-6/℃ Max. (-40 ℃ to +85 ℃)
  - Free run accuracy : ±4.6 × 10^-6 Max./ 20 years (For Stratum3)
  - Wander generation (TDEV, MTIE) :
  Conform to : ITU-T G.8262.1, G8273.2
  - External dimensions : 5.0 × 3.2 × 1.45 mm (10 pins, 4 pins)
  - (Vc function : Not suported)

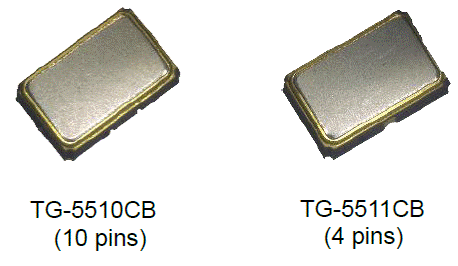

 Learn more  TG-5510CB  TG-5511CB


  - Network equipment
   - Base station
   - Microwave
  - Sync compliance standard
   - Stratum3
   - SyncE
   - IEEE1588
