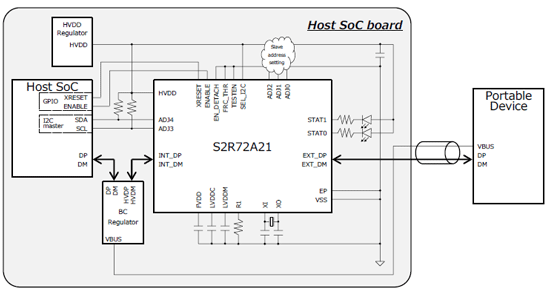

S2R72A21 is the Re-Synchronization IC which re-synchronizes the HS packet of USB 2.0 (Universal Serial Bus Specification Revision 2.0).

Stable longer connection using various USB applications, such as car navigation / car display audio to the smart phone / portable audio player.

S2R72A21 is complying with the automotive level grade quality and support the max temperature range up to 105℃.

On-board Quality

• AEC-Q100 support.

Excellent data communication characteristics (HS 480Mbps)

• HS transmission: Transmission waveform with low jitter - Support HS transmission current control            -Support HS transmission current control
• HS reception: Very high reception tolerance

Automatic USB line monitor and control function

• HS communication: Re-synchronize with HS Synchronizer
• Except for HS communication: Passes through with analog switch

Small Size Package

• QFN32-pin 5mm x 5mm Wettable

Extensive Operating Temperatrue Range

• -40℃ to +105℃

News source: https://global.epson.com/products_and_drivers/semicon/products/interface/re_synch_ic.html

More information, please contact Mr. Alex Cheng at Seraphim, Taiwan distributor of Epson, Tel:6615-8281 ext.212 or email to alexcheng@seraphim.com.tw

Vendor:

Seiko Epson Corporation
