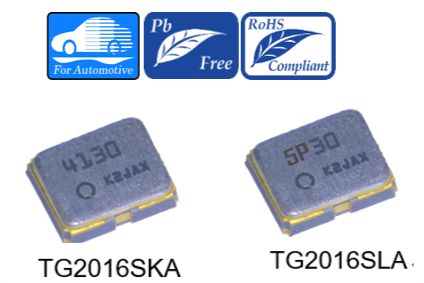

TG2016SKA and TG2016SLA are automotive grade AEC-Q100 compliant temperature-compensated crystal oscillators. Using an Epson-developed and fabricated IC and MHz fundamental crystal, it supports high temperatures up to 105 ºC, features a frequency slope and G sensitivity suitable for GNSS reception, and low jitter suitable for Wi-Fi used for V2X.

Features

• TCXO For Automotie
• Output frequency : 13 MHz to 55 MHz
• Supply voltage : 1.8 V Typ. / 3.3 V Typ.
• Operation temperature
  • TG2016SKA: -40 ℃ to +105 ℃
  • TG2016SLA: -40 ℃ to +85 ℃
• Frequency / temperature characteristics : ±0.5 × 10-6 Max.
• G-sensitivity: ±1.5 × 10-9 / G Max.
• Phase Jitter (12 kHz to 5 MHz): 0.22 ps Typ.@26 MHz, 0.13 ps Typ.@38.4 MHz
• External dimensions: 2.0 × 1.6 × 0.7 mm Max.
• Conforms to AEC-Q100
• TCXO / VC-TCXO / TCXO-Standby

Application

• GNSS for Automotive, V2X (TCU, DSRC)
  • GNSS: Global Navigation Satellite System
  • V2X: Vehicle to Everything
  • TCU: Telematics control unit
  • DSRC: Dedicated Short Range Communication

News source: https://www5.epsondevice.com/en/news/topics/tg2016ska_sla_200702.html

More information, please contact Mr. Alex Cheng at Seraphim, Taiwan distributor of Epson, Tel:6615-8281 ext.212 or email to alexcheng@seraphim.com.tw

Vendor:

Seiko Epson Corporation
